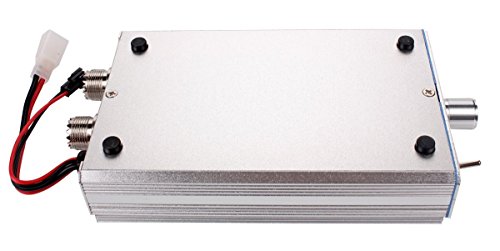

Zowaysoon 45W HF Power Amplifier for QRP Radio FT-817 IC-703 KX3 Enhancing Transmission Power (with Welded FT-817complete cable)

$250.99

1. Operating frequency: 80m 40m 30m-17m 15m-10m
2. Work mode: SSB CW AM,RTTY and FM-Reduced duty cycle
3. 5W Input Power, 45W Output Power

Category:

Description

MX-P50M hf power amplifier,for QRP transceiver,Improve signal。Can be used both
as a base and mobile unit, Extremely Small Compact and light weight ,
Full integrationwith the FT-817 using the supplied interface cable,
The amplifier incorporatesvarious protection circuits such as high VOLTAGE,front mounted LED display

This amplifier can be successfully used with other QRP rigs such as the ICOMIC-703(and Elecraft KX3).
YAESU FT-817ND Quick operating manual:
1. Connect power cord to DC power supplier, Red to “+”, Black to” -”
2. Connect ACC cable to FT-817 ACC and amp
3. Adjustment “BAND ADJ” button,Select the band.
4. Connect antenna to amp “ANT” and “input” from FT-817 antenna out.Notice! Theantenna you used that should well tuned, the SWR should less than 1:1.5
5. Open the power on both power supplier and AMP. The power indicate on.
6. Power on FT-817, the band indicate on Amp shoule be on.
7.Press PTT, the TX indicate on Amp should be on.
Notice! If working onFM or SSTV for long operating time, should lower the output power on FT-817,say 2.5W or 1W.
Other QRP transceiver operating manual:connect acc cable to transceiver PTT-TX and amplifier,ACC green to”GND”,REDTO”TX-PTT”,the radio “TX-PTT”view manual.

Specifications
Frequency Band:80m40m30m-17m 15m-10m
Operating Modes:SSB CW AM,RTTY and FM-Reduced duty cycle
Rf input:5WOut
power:40-50W
Band mode:Manual
Power requirement:13.8V(11-15V) 8A,RED “+”BLACK “-”
Cooling method:passive air cooling
Antenna connector:SO-23950Ω
Size:155*100*35(mm)D*W*H
Weight:0.55KG
1. Operating frequency: 80m 40m 30m-17m 15m-10m
2. Work mode: SSB CW AM,RTTY and FM-Reduced duty cycle
3. 5W Input Power, 45W Output Power
4. Power Requirements: 13.8V 8A///Antenna Interface: SO-239 50Ω
5. MX-P50A hf power amplifier, for QRP transceiver, Improve signal. Can be used bothas a base and mobile unit, Extremely Small Compact and light weight, Full integrationwith the FT-817 using the supplied interface cable, The amplifier incorporatesvarious protection circuits such as high VOLTAGE,front mounted LED display
